Flat Corrosion Cell (50 ml) Volume
Flat Corrosion Cell (50 ml) Volume

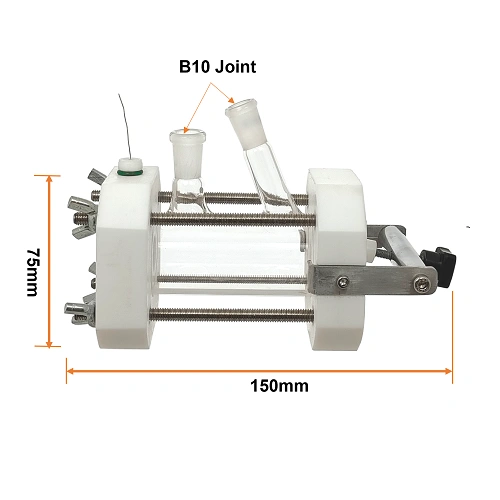

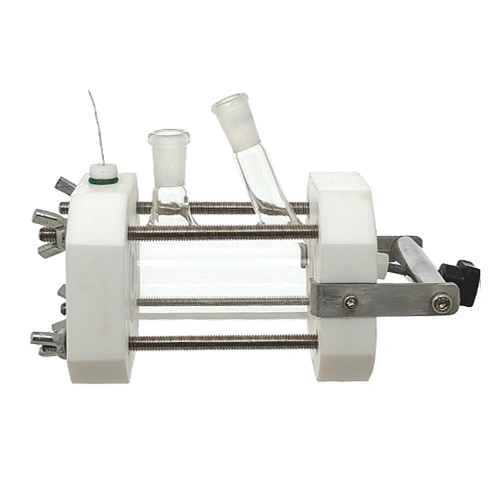

The Flat corrosion cell is suitable for corrosion measurements of a wide variety of flat samples in a liquid environment. It contains high-quality Polytetrafluoroethylene (PTFE), borosilicate, and stainless-steel materials that can withstand at elevated temperature (up to 100oC).
The Flat corrosion cell is suitable for corrosion measurements of a wide variety of flat samples in a liquid environment. It contains high-quality Polytetrafluoroethylene (PTFE), borosilicate, and stainless-steel materials that can withstand at elevated temperature (up to 100oC).
Technical Specification
| Working Volume | A borosilicate glass cell of 50mL volume |
| Working electrode port | 1cm2 bore onto the PTFE frame, which exposes the working electrode/sample to the electrolyte solution. |
| Working electrode dimensions | Minimum 15mm X 15mm. |
| Sample mounting screw | A threaded rod to attach the coupon tightly on the working electrode port. |
| Reference electrode port | SGJ B14, compatible with all MTX reference electrodes. |
| Counter electrode port | A small bore onto the PTFE frame containing Pt-mesh counter electrode of mesh size 10mmx10mm. |
| Spare port | SGJ B10; can be used for other purposes such as gas purging or temperature sensing. |
