Quartz Spectroelectrochemical Cell
Quartz Spectroelectrochemical Cell

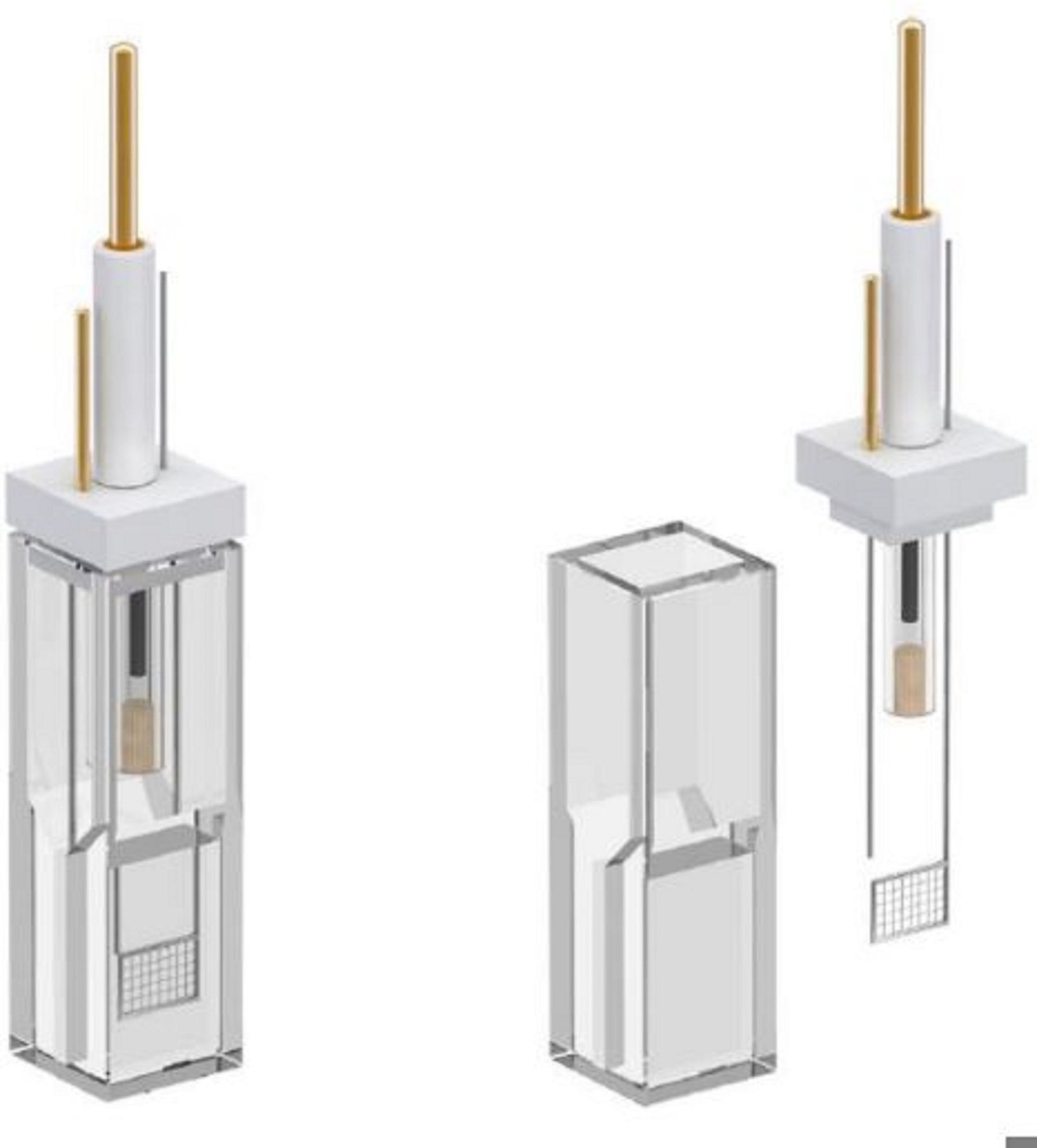

The Spectroelectrochemical Cell, made from high-quality quartz, combines optical and electrochemical techniques for detailed analysis of reaction mechanisms. It allows real-time monitoring of electrochemical processes while capturing spectroscopic data. Perfect for applications requiring precise, multi-dimensional measurements in research and development.
Spectroelectrochemical Cell
Detailed Specifications:
- The electrolytic cell body is polished with quartz completely,
- Light transmittance: above 95%,
- Lid material: PTFE,
- Electrodes Included:
Reference silver-silver chloride electrode (diameter 3.8 mm),
Platinum mesh counter electrode (6 * 7 mm),
Working electrode platinum wire dia 0.5 mm. - Optional working electrode: Glassy carbon and gold disc with a diameter of 3 mm (Separate cost),
- Cell dimension 12 mm x 12 mm.
